HMI Overview – An Introduction to HMI in OnPing

** This overview covers the HMI Widget. For information about edge-located HMIs, please refer to the HMI Local Overview **

Introduction #

Welcome to the introductory primer for the OnPing HMI widget. This document reviews the basic information a User will need to know to navigate around HMIs in OnPing.

What is HMI? #

A Human Machine Interface, or HMI, manages communication between people and machine systems. In OnPing, this job is handled by the HMI widget – a user configurable tool.

The HMI widget fulfills traditional HMI needs with responsive graphic displays, live data stream feeds, and simple controls configuration. Furthermore, the HMI widget leverages the OnPing platform to enable flexible design choices and encourage a high degree of experimentation.

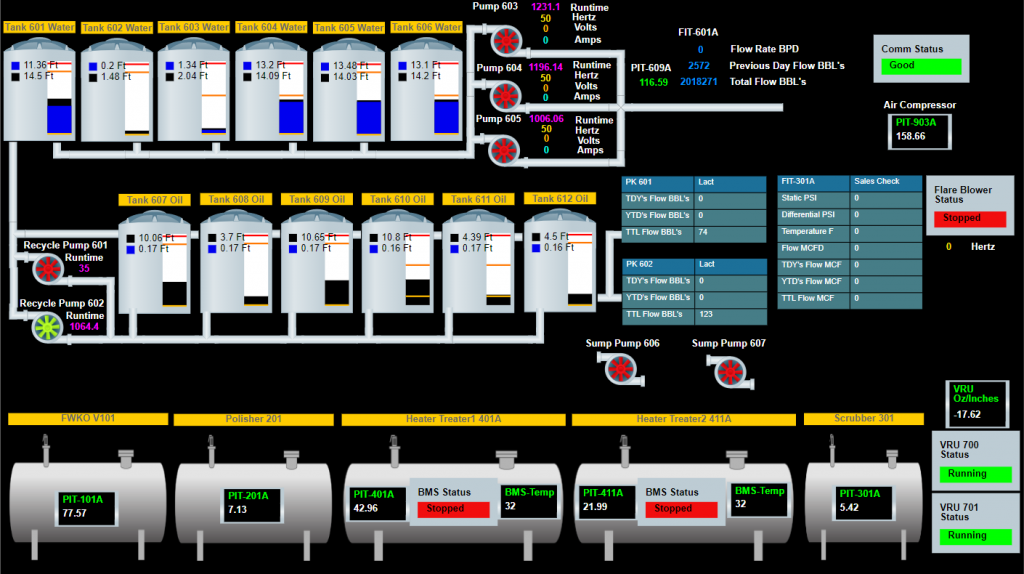

Example 1.0 – An example HMI for a water tank and pump system

A basic understanding of HMI in OnPing is important because so much of OnPing is built around this idea of simplifying data to make information easier to see and act on. This document introduces HMI and highlights the key features of the widget.

The Role of HMI in OnPing

HMI can fill several roles for Users, including:

  • Visual representation of devices, facilities or systems
  • Insight into current system conditions
  • System control interface

How an HMI will be used, who will interact with the interface, and what information needs to be communicated are each factors that will contribute to the final design of the HMI.

** Future mentions of HMI in this document refer to the HMI widget **

HMI: Basic Parts #

HMI is a full-featured application with a vast set of possible configurations. For the purposes of this introduction, we want to simplify the feature down to some core elements. The basic composition of an HMI consist of these parts:

  • Components
  • Parameters
  • Background/Field

Each part has its own set of configurable properties and a role to play in the design of an HMI. There are other features we will mention in this document, but these are the most basic elements of an HMI.


There are 2 main types of Components, each with their own set of advantages:

  • Pre-made
    • Pre-made images for the HMI are publicly available to all users
    • The library is managed by OnPing.
  • User Made Images
    • Image Holder
      • Upload images made by your team or found online
    • Git Backed Images
      • Display images stored in a GitHub repository
      • Enables universal image updates
      • Provides a central home for graphic storage

Components are very important. They form the visual backbone of your HMI. Every object you see in the HMI is a Component. Without them, there wouldn’t be much of a reason to use an HMI in the first place!


Example 1.1

In Example 1.1 Pumps spin and turn green when ‘On’. They are stationary and red when ‘Off’. Also shown is a non-interactive Component – the pipe!


Components also serve as the interactive medium in HMI. Connect them with data streams to enable device control and management from your screen.


Speaking of data, Parameters represent data streams in OnPing. Any time a value is read, a write occurs or a script is written – a Parameter is being used.

For an HMI to be interactive, Parameters must be assigned to Components. The Parameters you choose and how they are configured will determine whether the HMI is ‘Read-Only’ or if it has Control functions, so consider the purpose of the HMI before configuring the Parameters.


In 1.1, Components move and change colors based on readings from a Parameter


HMI Background or Field

The background of the HMI is Components will be housed. Size and color of the background may be modified to optimize for a variety of devices or contrast to improve visibility. This can be changed in size and color to optimize for various devices or contrast to improve visibility. All of the visual components in HMI will exist in the HMI Background.

HMI is a layer based environment. Move Components forward or backward to make them appear “in front of” or “behind” other components. Creative use of layering can create special effects or make a set of Components fit better within an HMI view.

Configuration Panels #

Configuration Panels are available at each level of the HMI widget:

  • Components
  • Alerts
  • HMI Background


Configuration Panels are available in ‘Edit’ mode. Enter ‘Edit’ mode by clicking the ‘Wrench’ icon in the top right of the widget.


Below, 2.0 shows a new Component Configuration Panel:

Example 2.0

In the Configuration Panel, you will find a list of attributes that can be modified. This is where the size, position, and color can be changed. This is also where you can assign Parameters to a Component.


Some attributes – like color – can be set to change in real time based on the status of a Parameter!


Where Are the Configuration Panels?

Alerts and HMI Background Configuration Panels will appear in the ribbon at the top of the HMI widget.

To open the Component Configuration Panel:

  1. Click on an existing Component in the HMI


  1. Open the Component Selection menu with the Green ‘>’ button and select a Component

Alerts #

Another feature of the HMI widget is the Alerts system. Alerts provide notifications about important activity in HMI. The configuration panel for Alerts can be accessed through a button in the top right corner of the HMI display in Editing mode.

The Alerts feature is ‘Read Only’. Choose a Parameter to monitor for activity, and set rules to create an Alert based on the Parameter’s activity.


Example 1.3

Alerts are commonly used to create notifications for a tank level. It might be useful to know that the tank in 1.3 is getting close to empty.


Alerts are less powerful than Alarms or device control. They are meant to bring attention to interesting activity. For more intensive operations, read our documentation for Alarms in OnPing.

Import/Export #

Import/Export is located in the top ribbon of HMI in edit mode. The functions work in tangent with one another.

  • ‘Export’ creates a file with the configuration data from the HMI.
  • ‘Import’ an HMI file to create a complete copy of a previous HMI, including Background settings, Components, and active Parameters.

Import/Export is especially useful creating a new Dashboard or Panel that puts new context around the HMI.


Example: A Production Manager position is created in an organization that will need a new Dashboard – but the Production Manager still needs to see the current HMI. Import/Export makes it easy to bring this new position into OnPing without the hassle of rebuilding an HMI.


Another common application of Import/Export is to standardize HMI displays among a set of User Groups or replicate displays for common, low variance systems. Now you will only need to set the new Parameters for the HMI, instead of recreating the visual components one at a time.


Use ‘Export Data Only‘ to output a file to your desktop containing a list of data parameters for the HMI alongside associated values.



HMI is a very important feature that serves in several capacities. This guide reviews the basics of HMI, but the feature is expansive and impossible to cover in a single document. OnPing encourages you to experiment with features like HMI to explore new possibilities to discover the potential of your data system.
